ACJ-JXS-WIFI

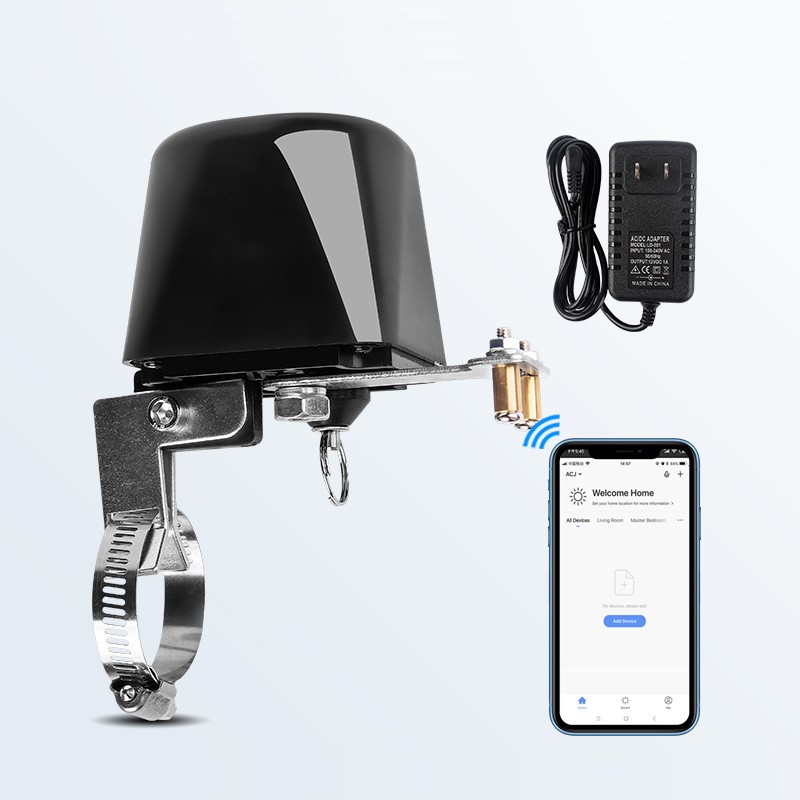

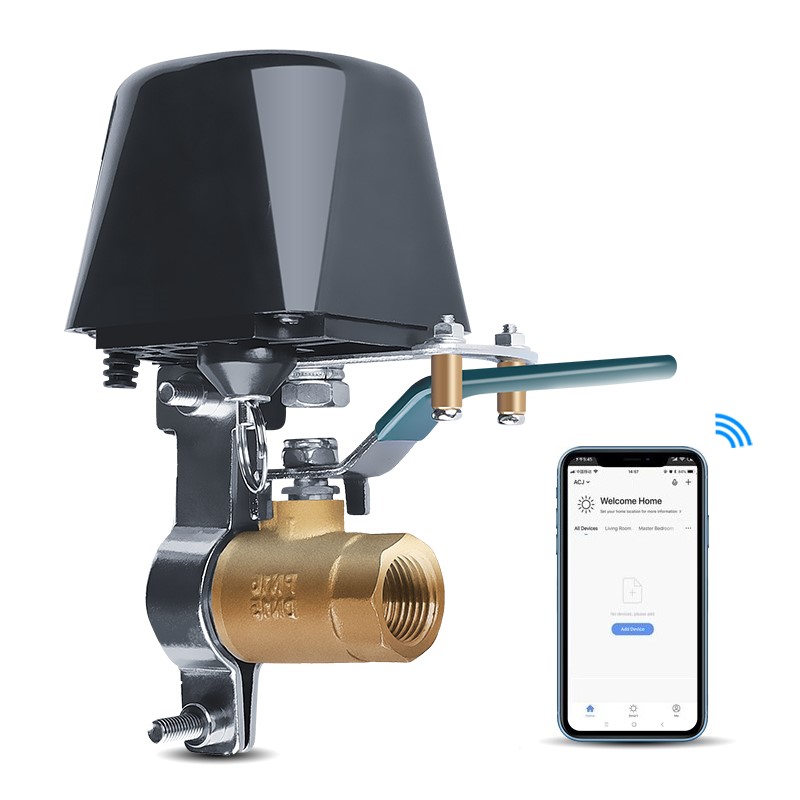

Wifi Valve Manipulator

Features:

*Can be used for both water and gas pipeline

*DC12V rated power, safe to use

*DC6V-18V power input

*Fast response 5-10s

*Mobile APP control

*Support timing on/off switch function

*High quality motor, guarantee long usage life

*Fine quality insulating and flame retardant materials

*Sealed and insulated waterproof design

*Simple installation

Parameter:

Rated voltage: DC12V

Power: DC6V-18V

Rated current: 100mA

Working current: 20mA-1000mA

Rated Power: 1.2W

Working consumption: 0.24W-10W

Valve pressure: 1.6MPa

Response time: 5-10s

Isolation resistance: ＞20MΩ

Withstand voltage: DC600V

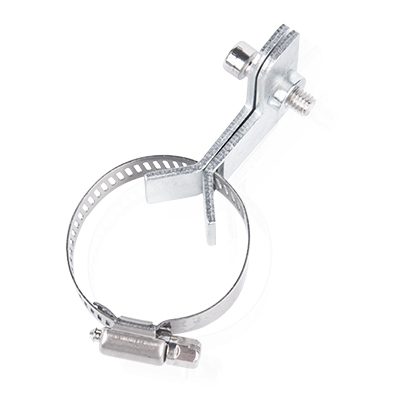

Valve bracket: adjustable bracket suitable for different valve size

Working temperature: -10°C~50°C

Working humidity: ≤95%RH
