ACJ-JXS02

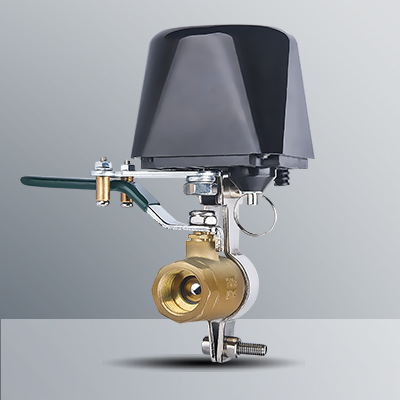

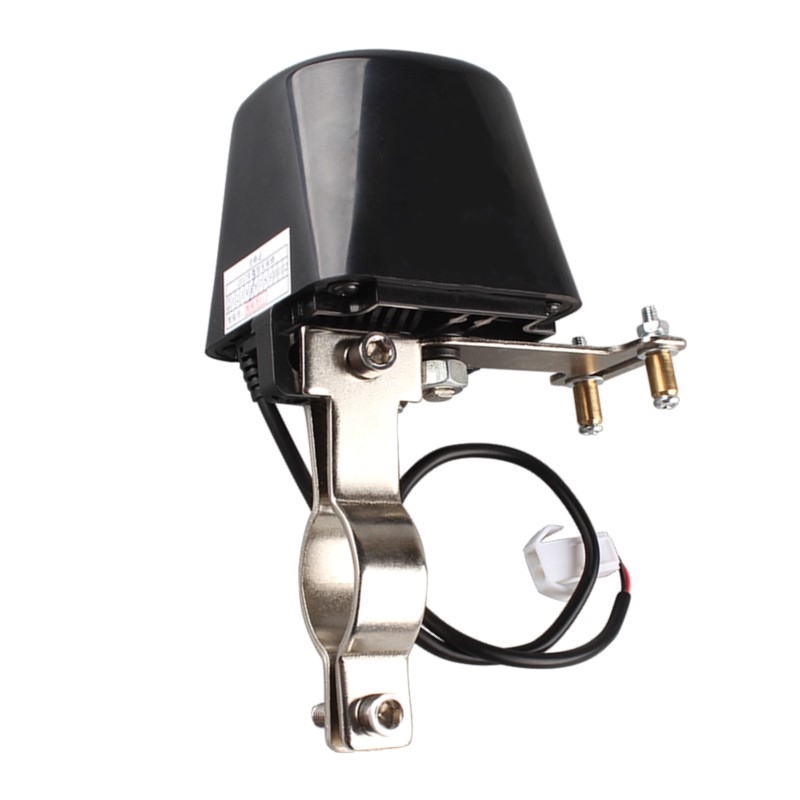

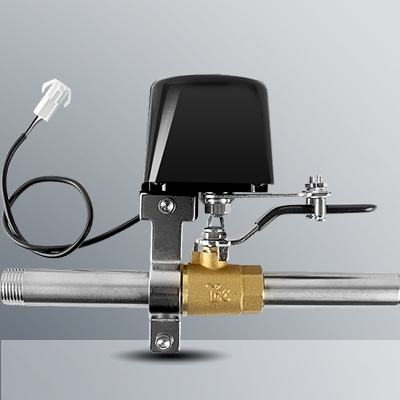

Gas Valve Manipulator

Features:

*Can be used for both water and gas pipeline

*Need to use with specific gas detector or water leak detector

*DC12V rated power, safe to use

*DC6V-18V power input

*Fast response once alarming

*Automatic shut off or manual control

*Fine quality insulating and flame retardant materials

*Sealed and insulated waterproof design

*Simple installation

Parameter:

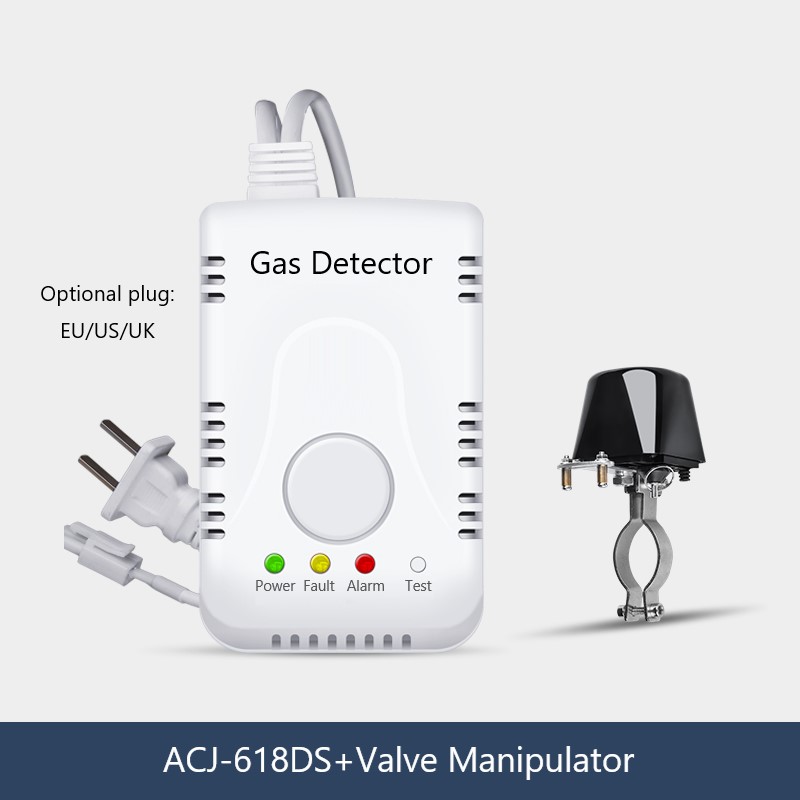

Need to use with specific gas detector

Rated voltage: DC12V；

Working voltage: DC6V-DC18V

Rated current：100mA;

Working current: 20mA-350mA-1000mA；

Valve shut-off: automatic or manual

Torque: 10-30-40 kg. Cm

Response time(auto mode): 5-10s

Insulation resistance: > 20 MΩ

Withstand pressure: DC600V

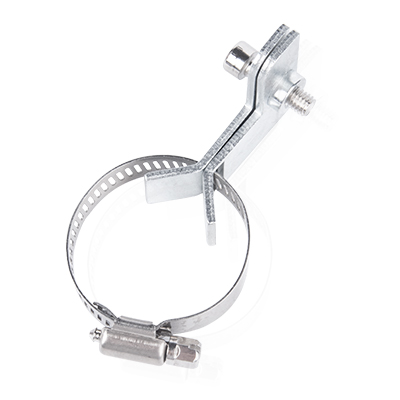

Valve bracket: adjustable bracket suitable for different valve size

Working temperature:  -10°C~50°C

Working humidity:≤95%RH
